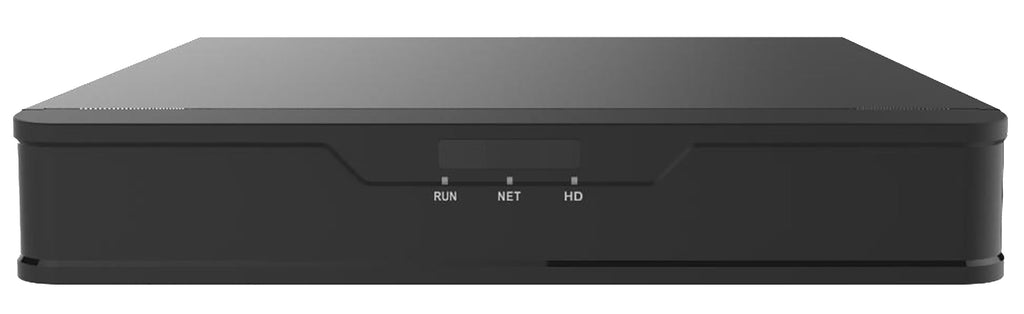

[1PV-NVR16U] 16CH Security System Hybrid HD H.265+/H.264 5in1 NVR, HD-TVI/CVI/AHD/IP, No HDD, 1080P HDMI/VGA Video Out, Phone APPs for Home & Office, Work w/ 5MP Lite Analog & 4MP IP Camera

**PROMOTION PRICE NOW**

[Safe and Dependable]
1. U.S TEL. local service, Tech Support#1-408-466-8968, 8AM-5PM Monday to Friday, California Time

[5-in-1 Hybrid 5MP NVR]

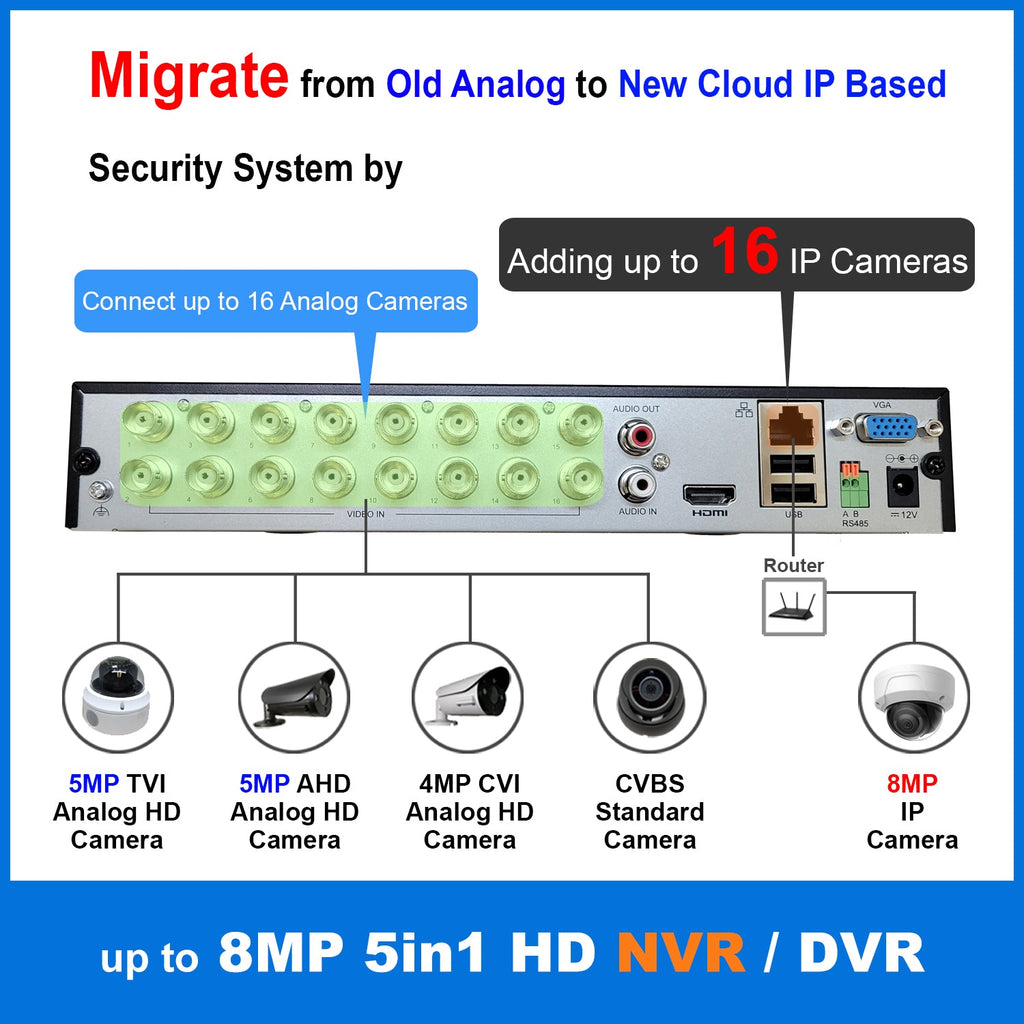

1.  Combination of 24 total Analog + IP cameras; Supports 16 Analog + 8 IP cameras, 15 Analog + 9 IP ... or to 8 Analog + 16 IP cameras by IP Address.
2. Support 1 x SATA HDDs (Each HDD can up to 8TB).
3. Exceptionally strong password and anti-hacking protocols to increase privacy and security. Snapshot, and Email notifications for real time protection.
4. NVR can support Analog HD TVI & AHD up to 5MP, CVI up to 4MP, and IP camera up to 8MP resolution.

[Advanced H.265+ High Efficiency Video Format]

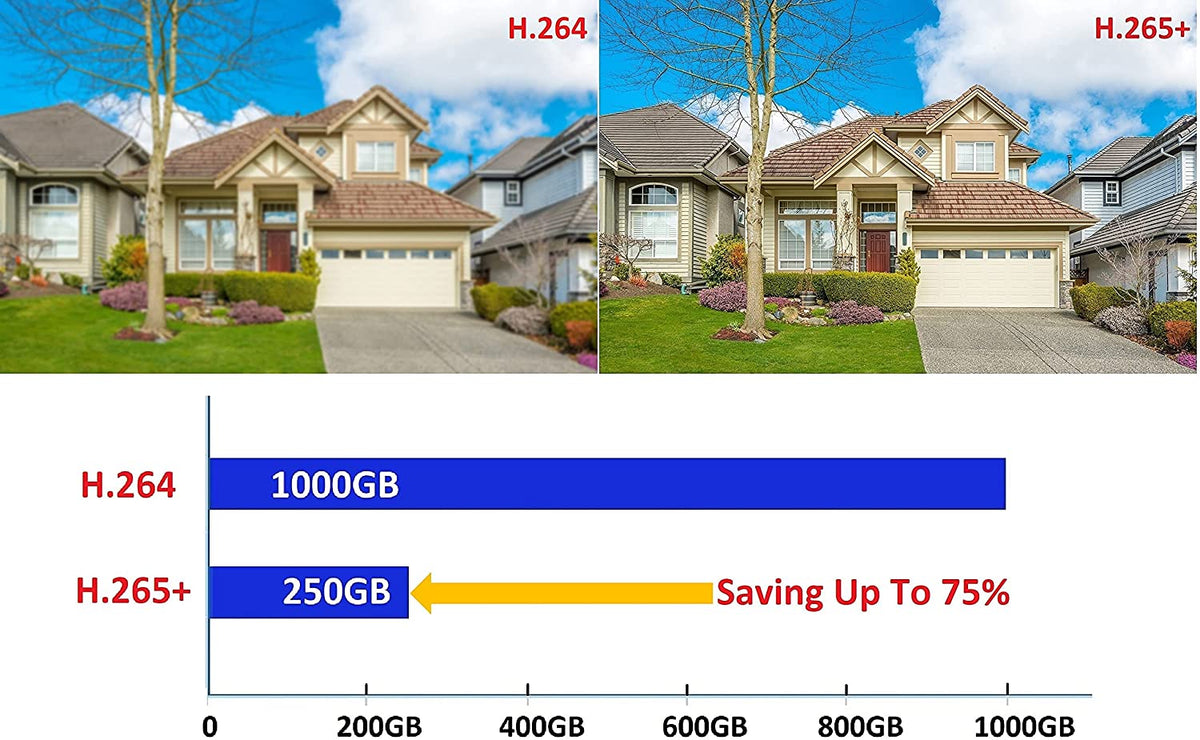

1. H.265+ can further improve compression ratio on the basis of H.265 standard
2. It can save about 75% storage compared with H.264 and thus effectively saving storage resources and provides an excellent and smooth viewing experience.

[Pre-Alarm Recording and Motion Detection]
1. Motion activated full screen alarm call up protection with optional audible warning.
2. Dual-stream: network video and local recording.

[User friendly setup instructions]
1. Including QIG (Quick Installation Guide) for PC based VMS/CMS integration.
2. Cloud based cell phone APPs for both Android and iPhone without confusing port forwarding, and real time Snapshot alarm notification. There are options to show 1, 4, and 8 cameras simultaneously on both the mobile APP on cell phone and also the Central Monitoring Software (CMS) on PC.

Feature Point

1. Remote access, Anytime Anywhere with mobile viewing and alarm notifications

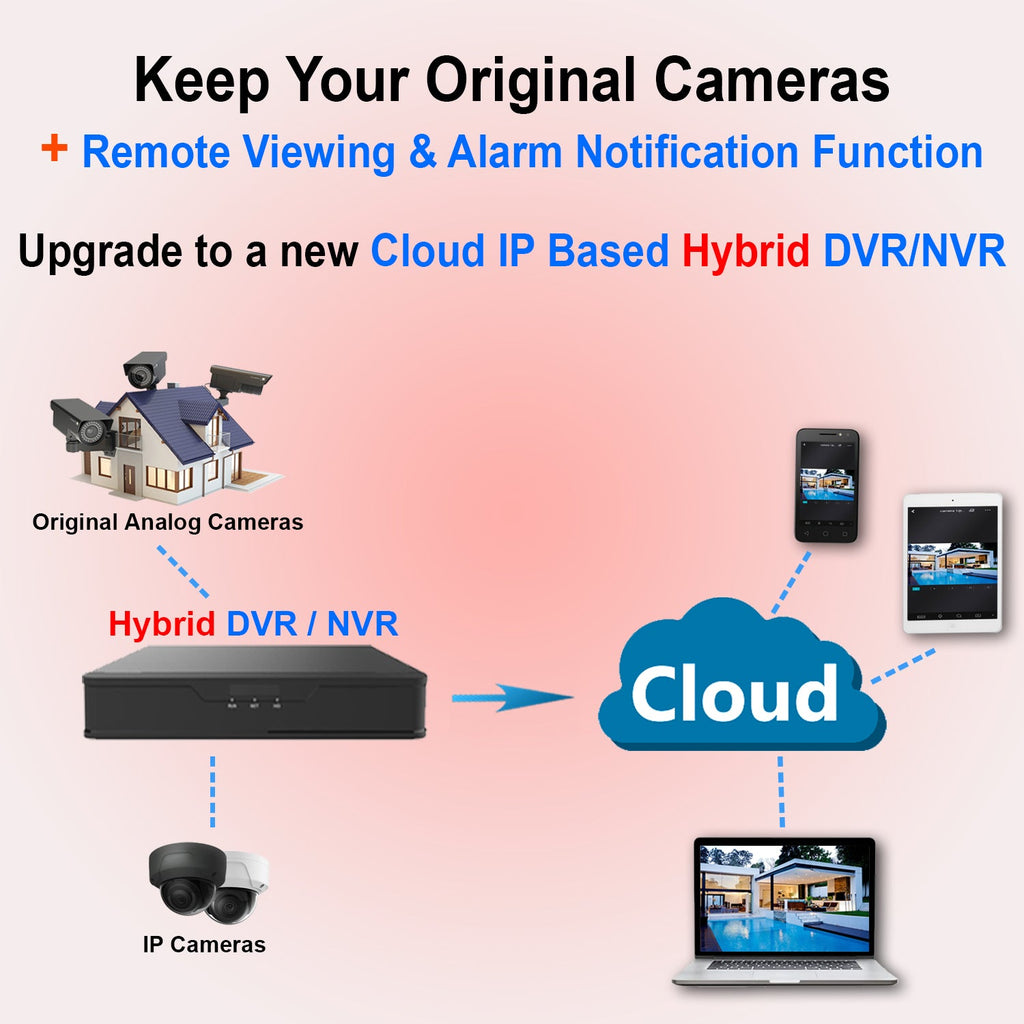

2. Keep your old analog cameras and upgrade your old/analog CCTV system to Cloud/IP based network system for remote access anytime anywhere capability.
3. Reliable & user-controlled storage that is confidential. Storage is local and not on the cloud, which decreases risk of cyber attacks

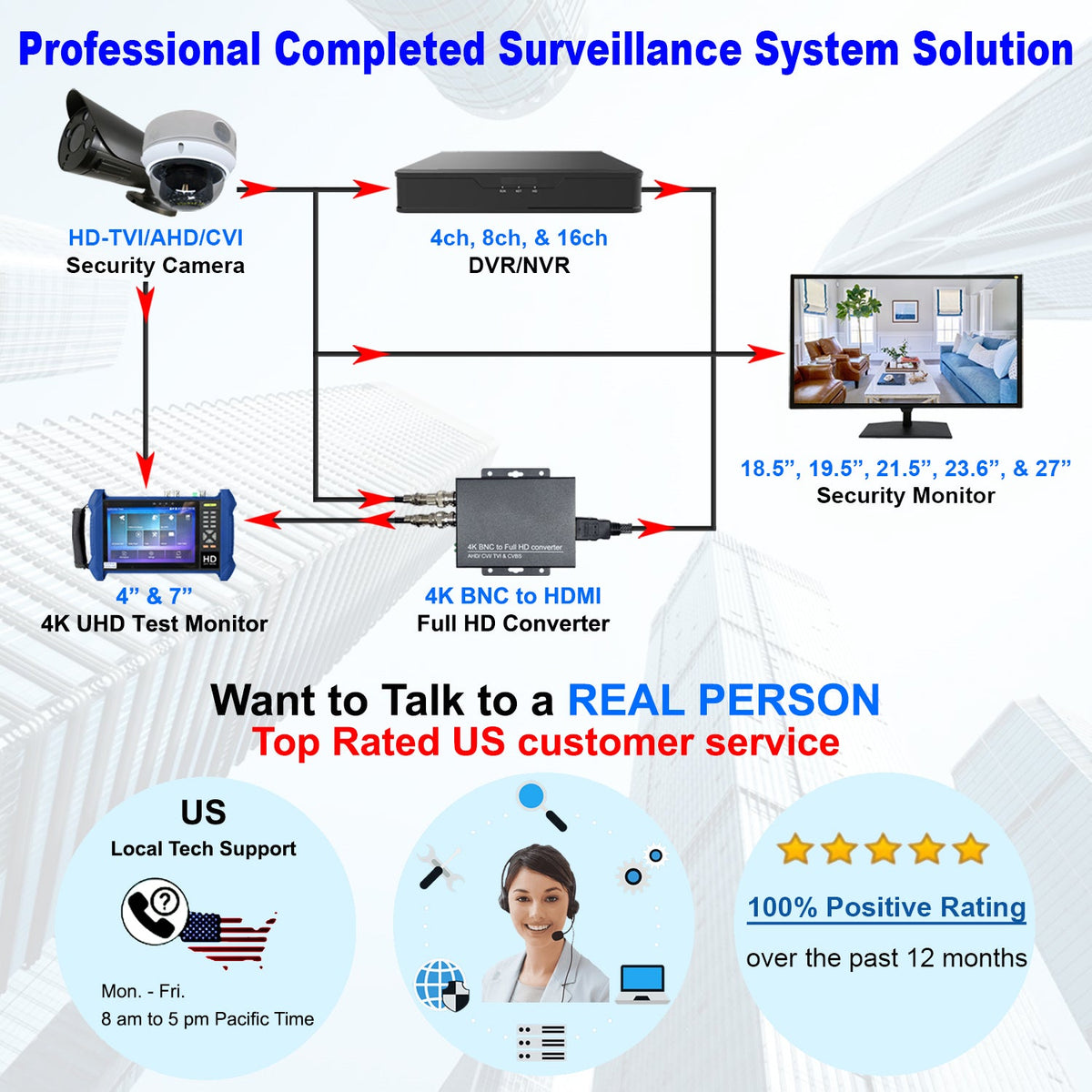

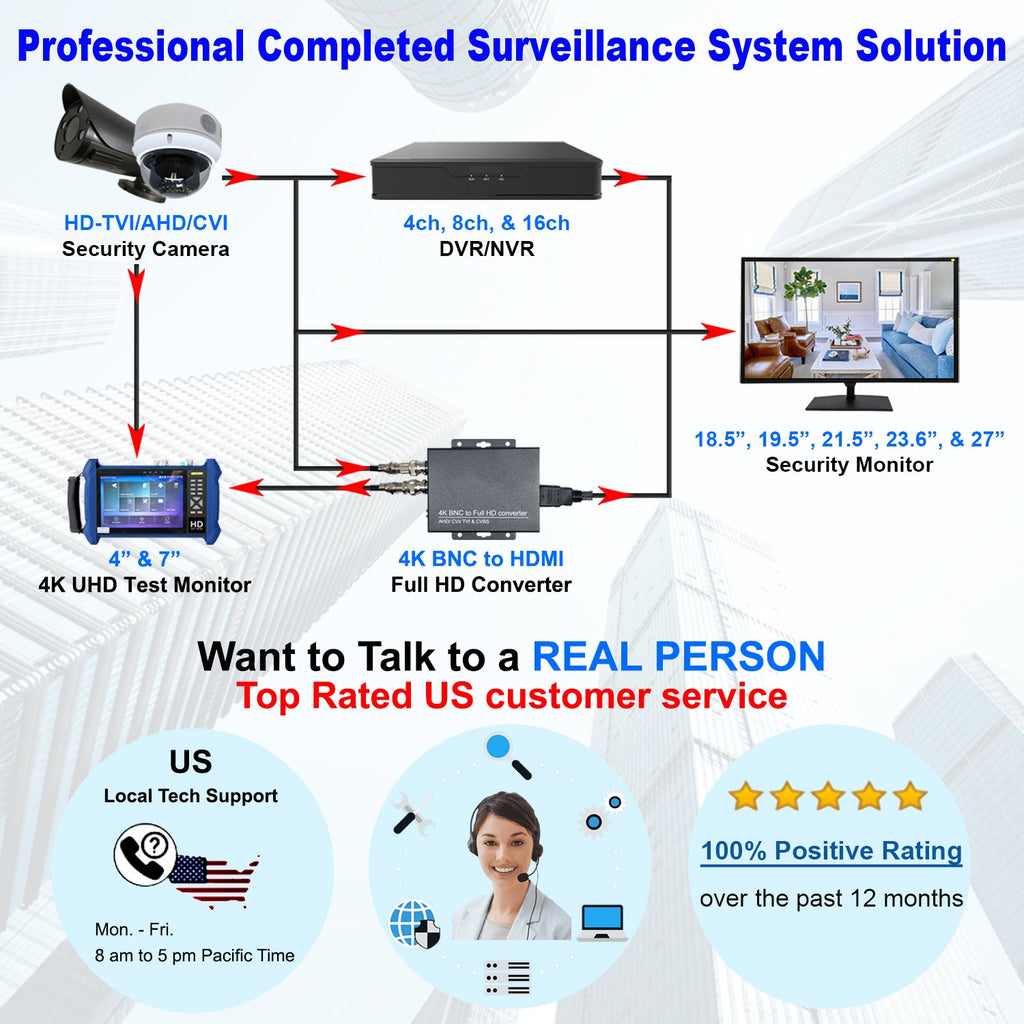

4. Comprehensive range of Super High Definition product line, including cameras, DVRs/NVRs, and Super HD monitors
5. “5-Star Best-Seller” rating with over 1000+ customer reviews
6. Top rated US-based live telephone customer service with 5 star rated customer feed backs
7. Motion/alarm notifications via cell phone/pad/PC/DVR with audio beeping and full page display call-up on local monitors.

This is 16CH True-HD NVR page which can be working with TVI cameras/ AHD cameras/ CVI cameras/ Analog cameras/ IP cameras, if you need 4CH/8CH True-HD NVR, please go to:

4CH True-HD NVRs

8CH True-HD NVRs

**WE USE WD PURPLE SURVEILLANCE HARD DRIVE OR SEAGATE SURVEILLANCE HARD DRIVE FOR OUR NVR!**

YOU CAN ALSO CHOOSE IF YOU WOULD LIKE TO HAVE PRE-INSTALLED (1TB/ 2TB/ 3TB/ 4TB/ 6TB/ 8TB) HARD DRIVE WITH IT FROM THE PULL-OUT LIST.

Description:

This 16CH 5in1 (TVI, AHD, CVI, IP, Analog CVBS) H.265 True-HD NVR (Digital Video Recorder) is designed especially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.265/H.264 with low bit rate, Dual stream, SATA interface, HDMI, VGA output, and USB Mouse supported, mobile view (by phones), etc., which ensure its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on. Combination of 24 total Analog + IP cameras; Supports 16 Analog + 8 IP cameras, 15 Analog + 9 IP ... or to 8 Analog + 16 IP cameras by IP Address. NVR can only support Analog HD TVI & AHD up to 5MP, CVI up to 1080P, and IP camera up to 8MP resolution.

 DVR/NVR USER MANUAL DOWNLOAD

 QUICK INSTALLATION GUIDE FOR MOBILE PHONE DOWNLOAD

 QUICK INSTALLATION GUIDE FOR CMS SOFTWARE DOWNLOAD

 DVR/NVR SPECIFICATION DOWNLOAD

 DVR/NVR SOFTWARE DOWNLOAD

Product Features:

• EXCEPTIONALLY SECURITY and PRIVACY via video encryption, strong password, and anti hacking protocols.

• VIEW ANYWHERE, ANYTIME through Snapshot, SMS text, and Email notification to cell phones

• CLARITY EVEN AT NIGHT with Full HD picture quality for solid day & night surveillance applications

• USER FRIENDLY CLOUD APPs without port forwarding for both Android and iPhone

• MOTION ACTIVATED full screen alarm call up notification with optional audible warning

• EXISTING & NEW HD SURVEILLANCE SYSTEM compatibility with Multiple video formats including Full HD/TVI/AHD, SD/960H/composite video, and IP/network.

• EXTRA VIEWING STATION via multiple video out connectors including: HDMI/VGA/IP network

• CLEAR SETUP INSTRUCTION including QIG (Quick Installation Guide) for PC based VMS/CMS integration, cloud based cell phone APPs, and real time Snapshot alarm notification.

• US Local Support

NVR Specification:

Feature Points:

1. H.265/H.264 compression with low bit rate and better image quality

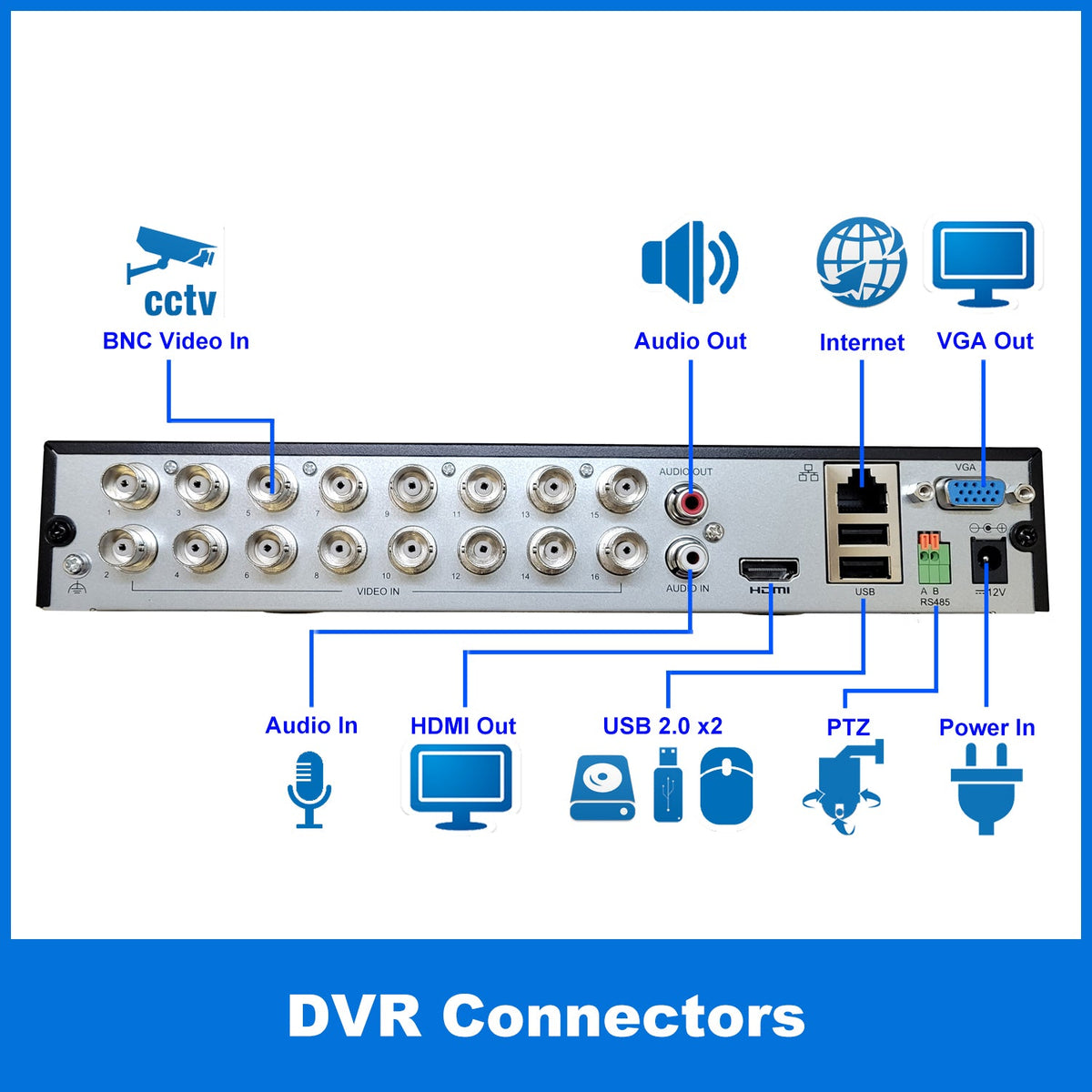

2. One HDMI Output Port and One VGA Output can up to 1920 x 1080/60Hz, One Audio Input and One Audio output.

3.  Combination of 24 total Analog + IP cameras; Supports 16 Analog + 8 IP cameras, 15 Analog + 9 IP ... or to 8 Analog + 16 IP cameras by IP Address.

4. NVR can only support Analog HD TVI & AHD up to 5MP, CVI up to 1080P, and IP camera up to 8MP resolution.

5. Up to 5MP Lite@6fps, 4MP Lite@8fps, 1080P Lite@15fps, 720P @15fps.

6. All 8 channels in High Resolution 1080P Recording and Display and with 1080P Video Playback.

7. USB Mouse to make full control

8. Support One SATA HDD to record for a longer time without any limitation; each HDD can up to 8TB storage for total 8TB storage.

9. Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network

10. Support schedule for motion detection, linked channels recording once motion triggered on certain channel

11. Support PELCO-D and PELCO protocol for PTZ control

12. Support mobile surveillance on iphone & Android Smart Phone, 3G network available, CMS to manage multi devices on internet

13. Support 1 Years Manufacturer Warranty
